Rack-clad buildings Warehouse and storage combined

Consultation meeting

rack-clad warehouse

Cost-effective all-purpose solution

We can help you find the perfect all-in-one warehouse and storage facility. Our rack-clad buildings deliver significant cost savings compared to conventional warehouse structures with additional racks installed. As well as offering superior storage, the uprights of our racking system act as a load-bearing substructure for the roof, and give you the option of attaching side walls to the building.

We've already helped our customers construct more than 1,000 rack-clad buildings, with the design of each building based on specific requirements. For example, buildings can be based on cantilever racks, pallet racks or a combination of both. Trapezoidal sheets or light panels may be used for roofing, and closed buildings are enclosed with panels and equipped with doors or rolling gates. Whatever you need to store, we have different design and construction options to suit you.

OHRA rack-clad buildings advantages

  • Saves space, offers flexible storage options and delivers significant cost benefits
  • Open or closed construction depending on your requirements
  • Strong steel substructure can accomodate increased building dimensions
  • Detailed sections, drawings and assembly plans needed for planning approval provided
  • Large range of accessories available

Cantilever rack-clad buildings

The roof structure for a cantilever rack-clad building is built with vertical uprights cut at an angle that suits the shape of the roof. The uprights of our cantilever racks are made from hot-rolled IPE steel sections, which gives them superior load-bearing capacity, and are constructed to support the roof.

Most rack-clad buildings are built with a lean-to or saddle roof. We can also include a rain gutter with the roofing structure, as well as wall cladding, trapezoidal sheets, ISO sound insulation panels or weather-protection systems attached to the rear side of the rack.

OHRA cantilever rack-clad building advantages

  • Weather-protected storage system for long and bulky goods
  • Saves space, offers flexible storage options and delivers significant cost benefits
  • IPE sections suitable for bearing heavy loads
  • Different roof shapes available, depending on land usage and rain drainage conditions

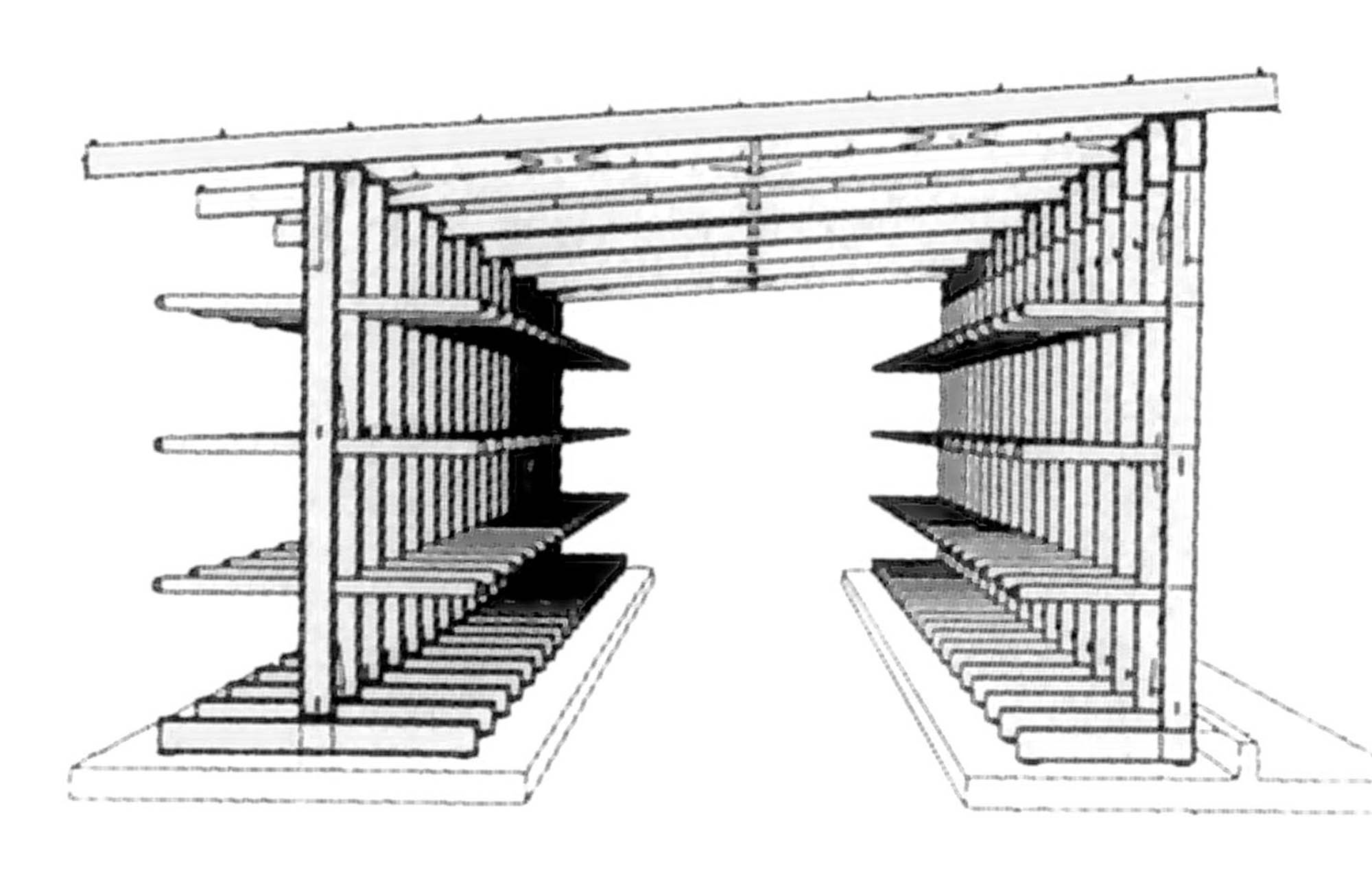

rack-clad cantilever warehouse
one of many ways to build a warehouse from cantilever racks.
rack clad warehouse cantilever

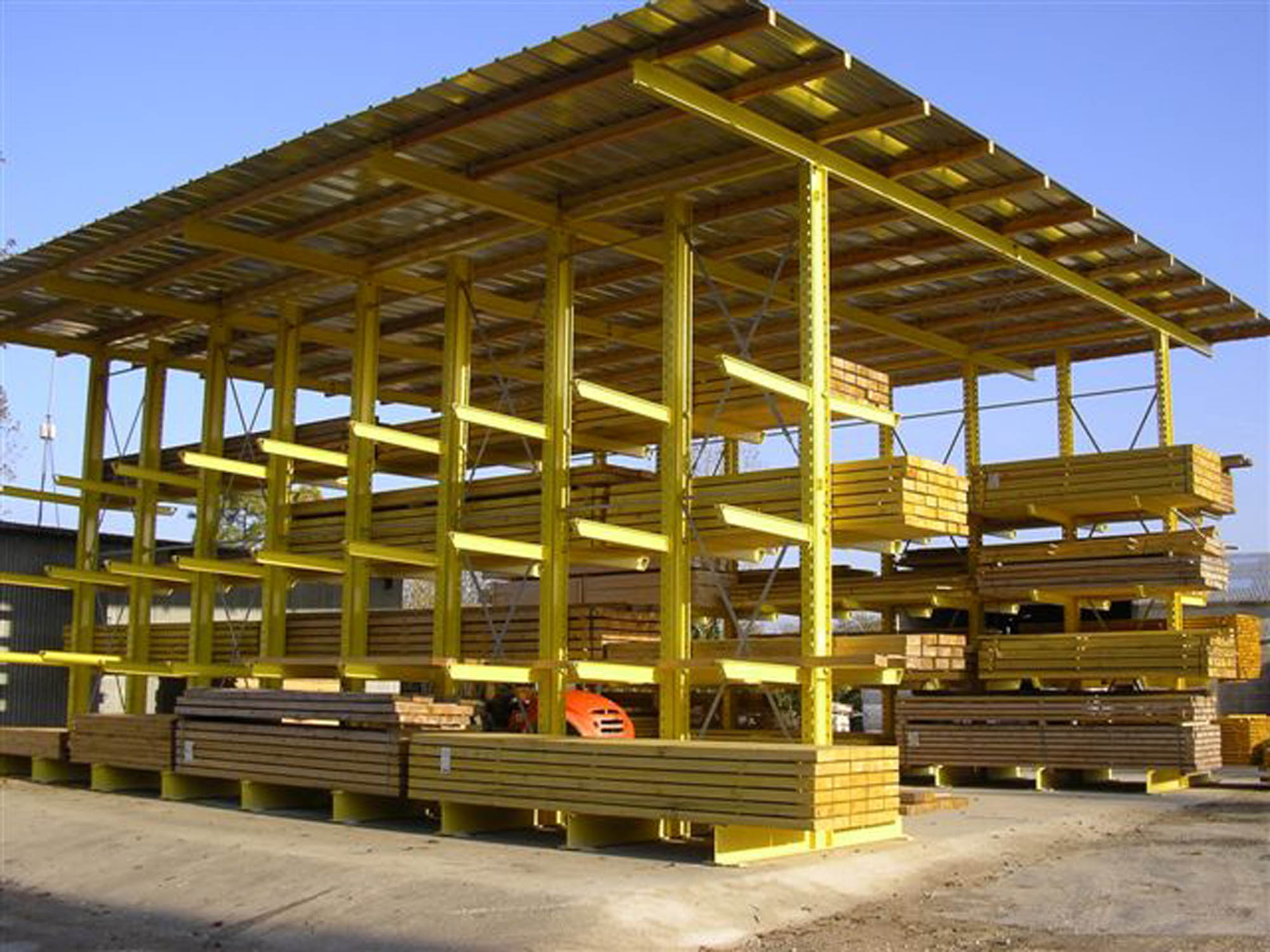

Cantilever racking warehouse with pent roof made of trapezoidal sheet metal.
Rack clad warehouse cantilever

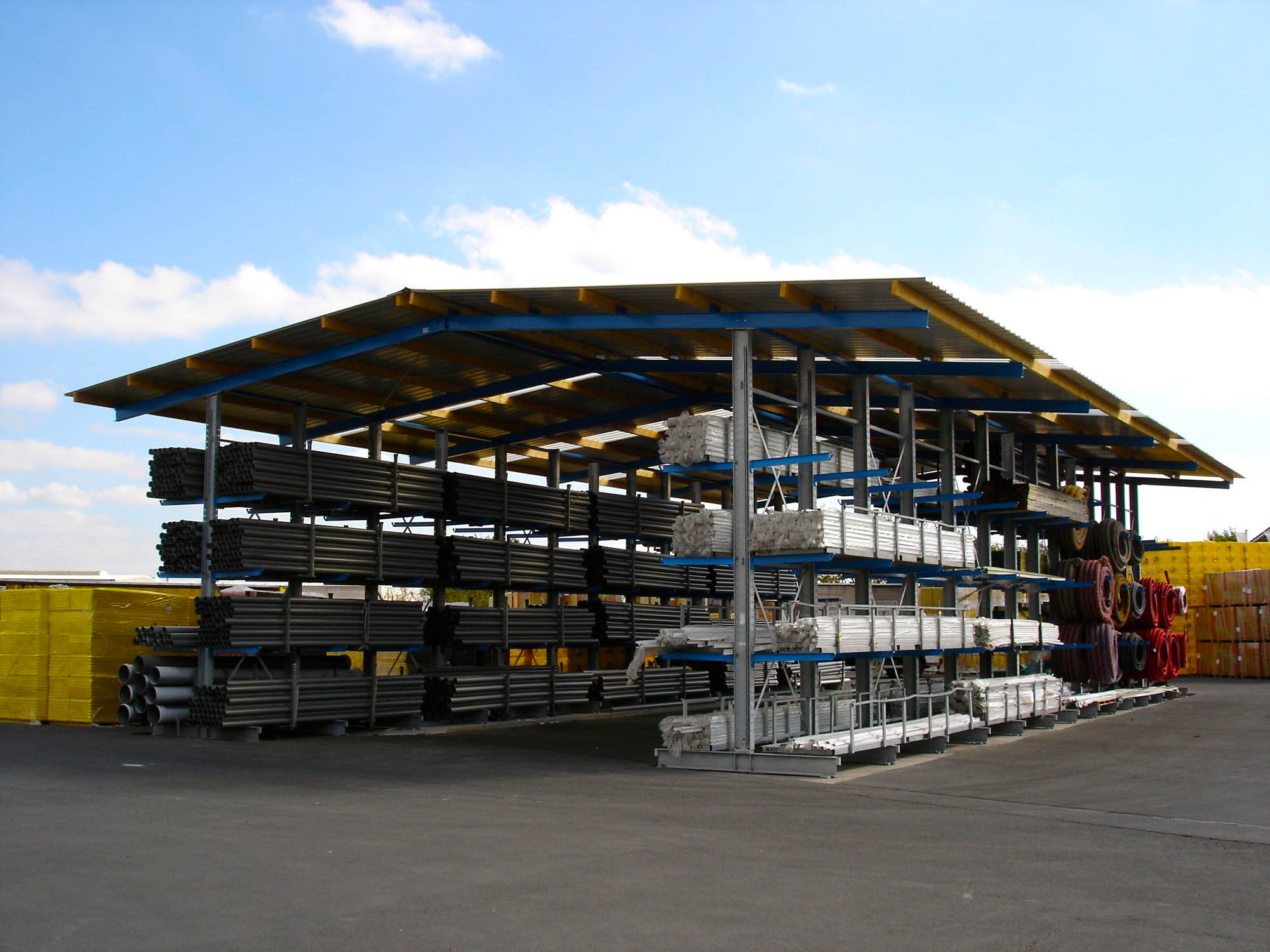

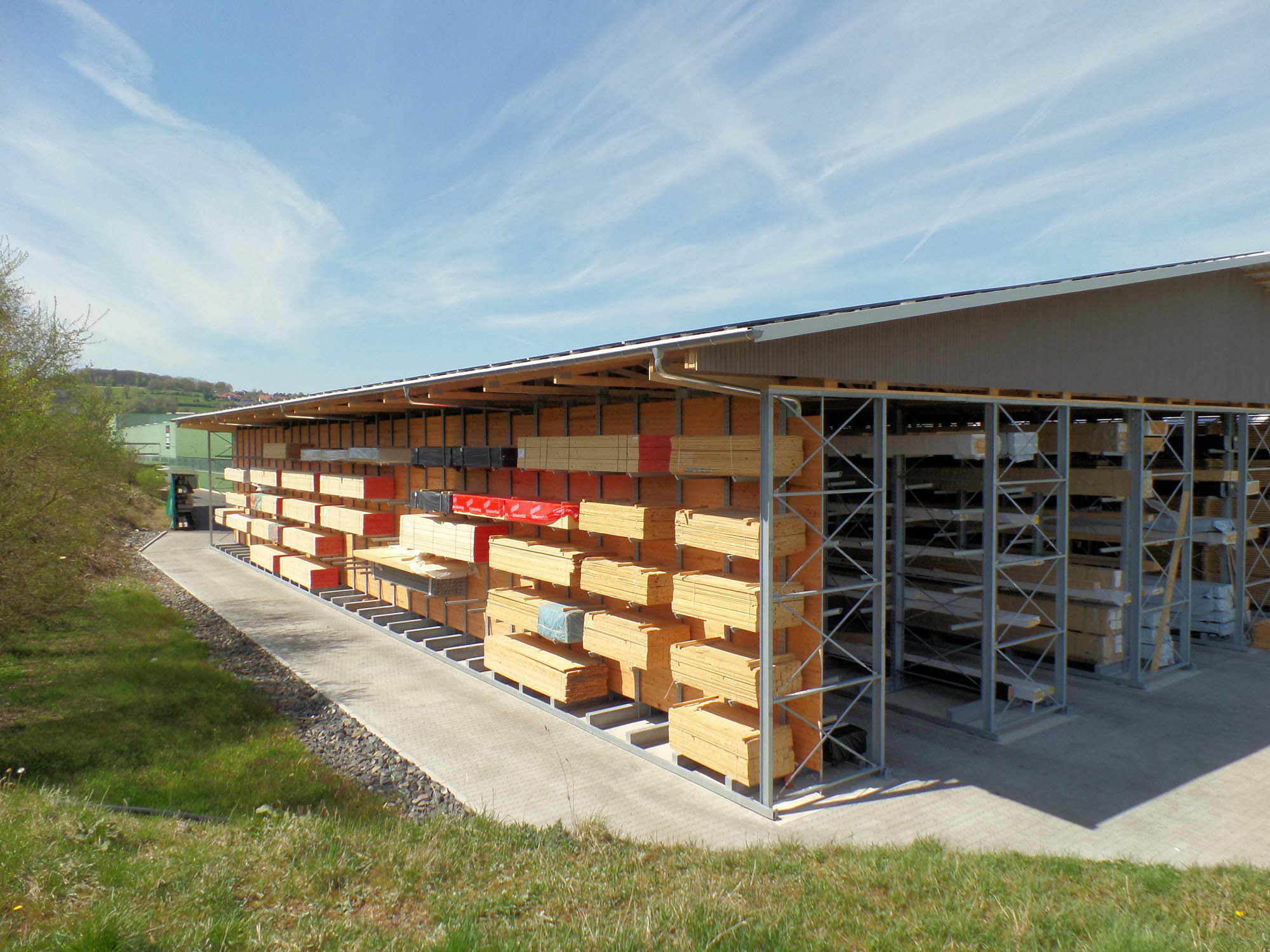

open cantilever rack-clad warehouse for the storage of PVC, aluminum and plastic.
rack clad warehouse cantilever

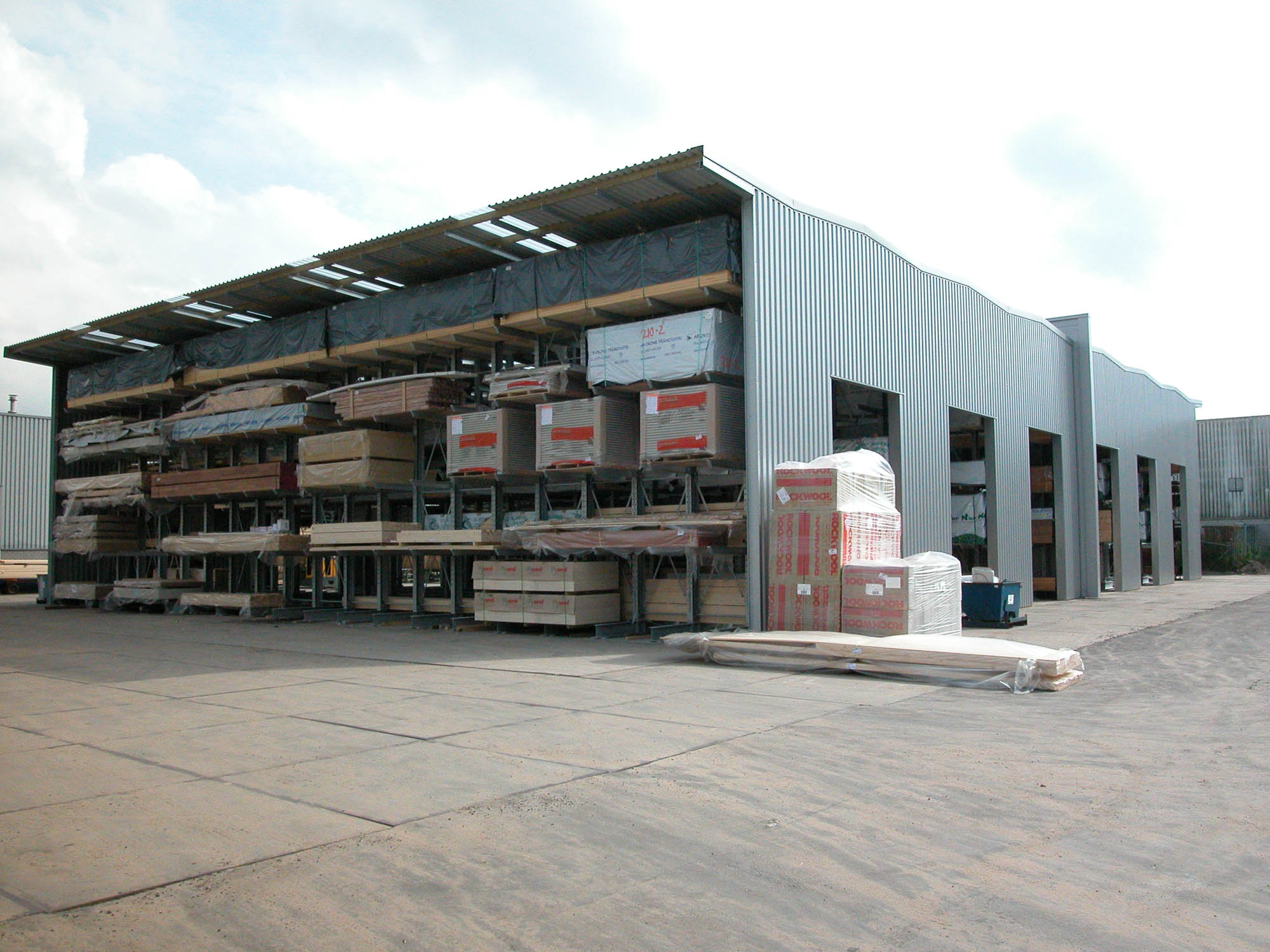

Cantilever racking warehouse with roof and wall. Light panels ensure sufficient lighting.
rack clad warehouse cantilever

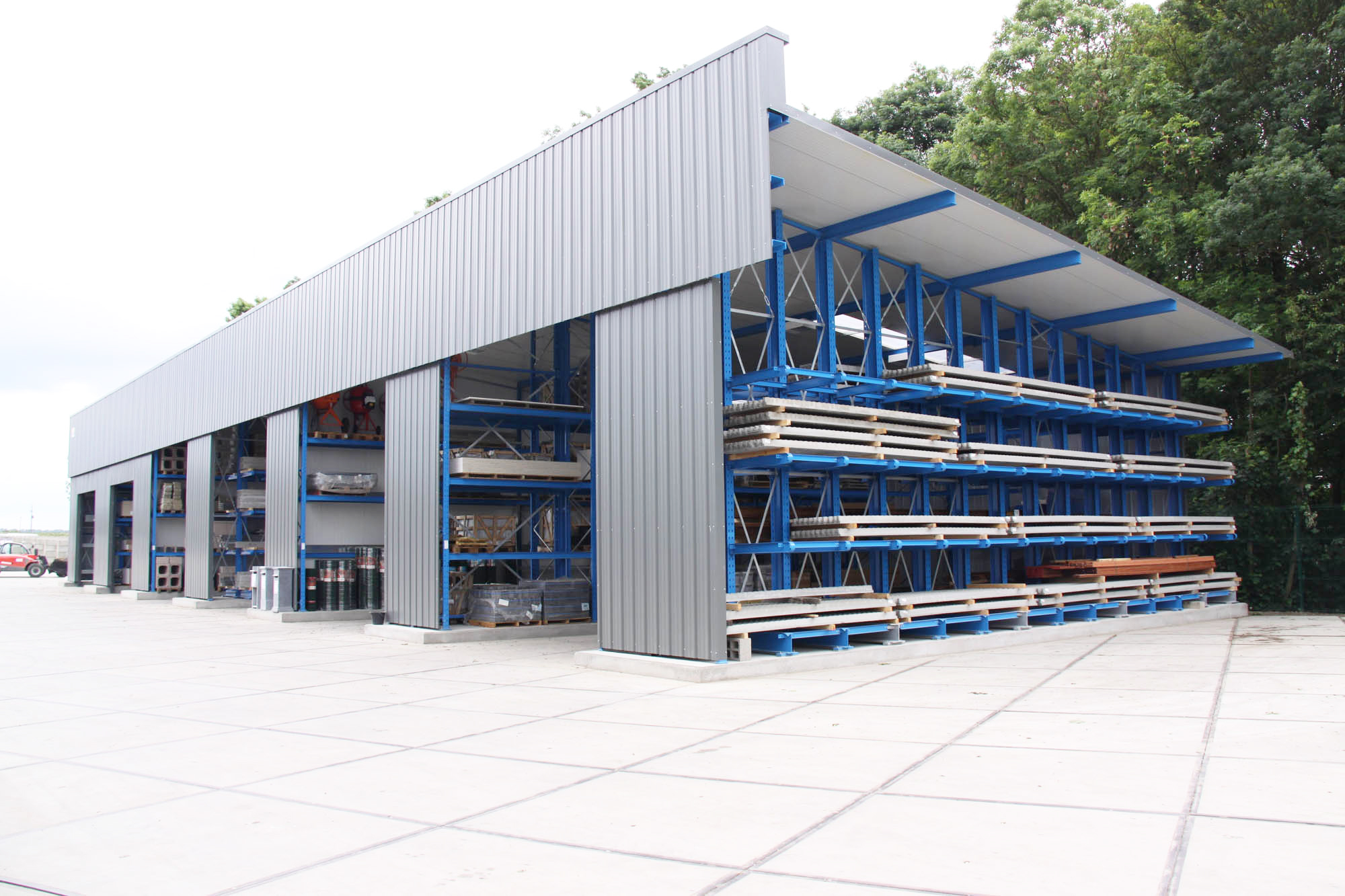

Complete rack clad warehouse with cantilever racks as a supporting structure

Pallet rack-clad buildings

Like cantilever rack-clad buildings, the rack uprights of our pallet racks are made of hot-rolled U sections and bear the loads of the roof and wall structures. We take care of all consulting, planning, production and assembly, taking into account different weather requirements and also earthquake zones to ensure buildings are effectively anchored. The uprights of the roofing racks are cut at an angle and subsequently connected with the roof sections.

Buildings can be designed either as open or completely closed halls with doors and gates. Different roof shapes are available depending on land usage and rain drainage conditions.

OHRA pallet rack-clad building advantages

  • Cost-effective storage compared to conventional hall structures
  • Saves space, offers flexible storage options and delivers significant cost benefits
  • Detailed sections, drawings and assembly plans needed for planning approval provided.
  • Large range of accessories available
rack clad warehouse pallet rack

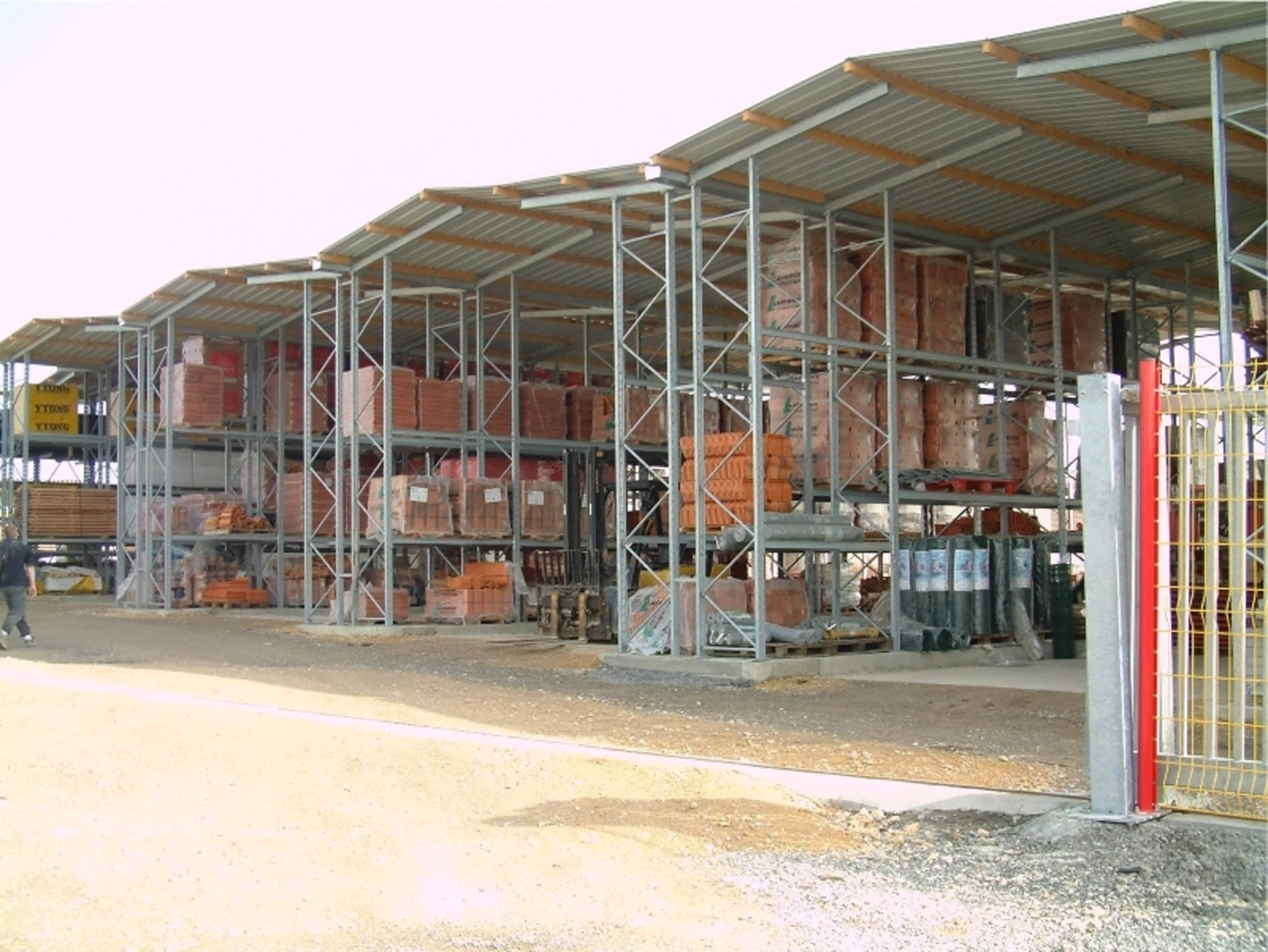

Hot-dip galvanized pallet racking warehouse for heavy building materials
rack clad warehouse pallet rack

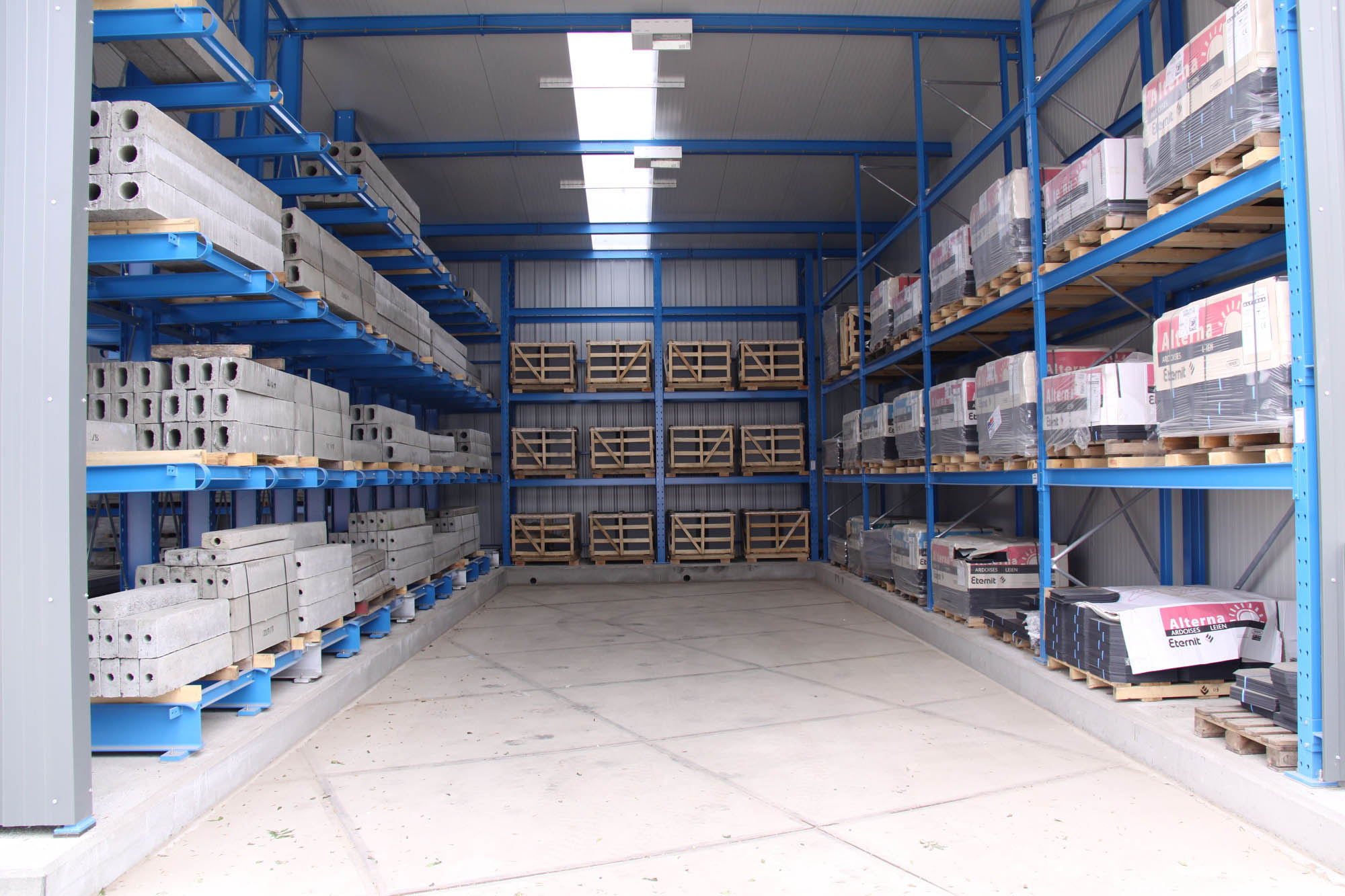

Storage of concrete elements in a warehouse with cantilever and pallet racks.
rack clad warehouse pallet rack
Building materials on pallets are stored in a rack-clad warehouse with pallet racks
rack clad warehouse pallet rack

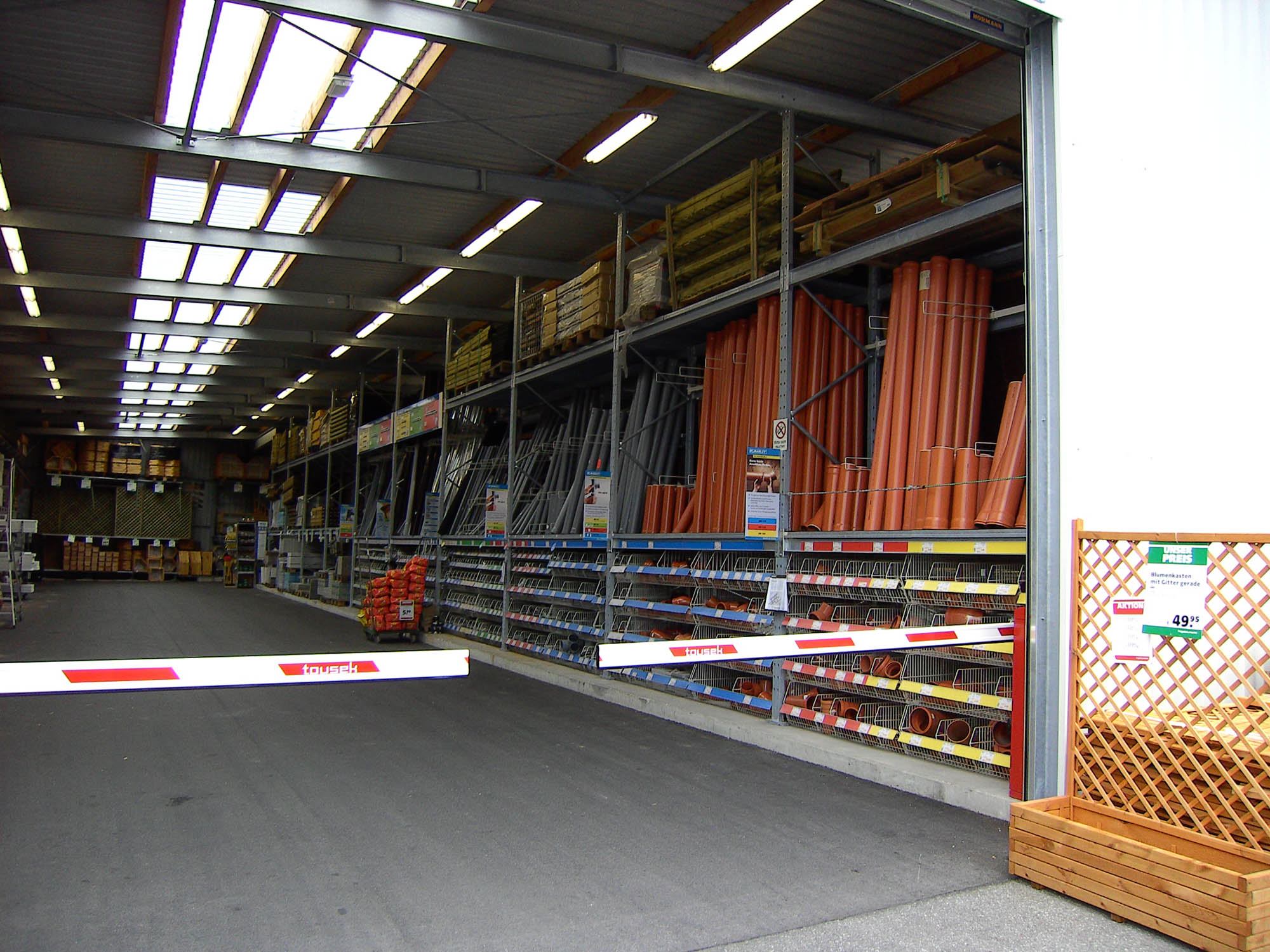

Drive-in market at a building materials store. Hot-dip galvanized pallet racks serve as a substructure for the roof covering.
rack clad warehouse pallet rack

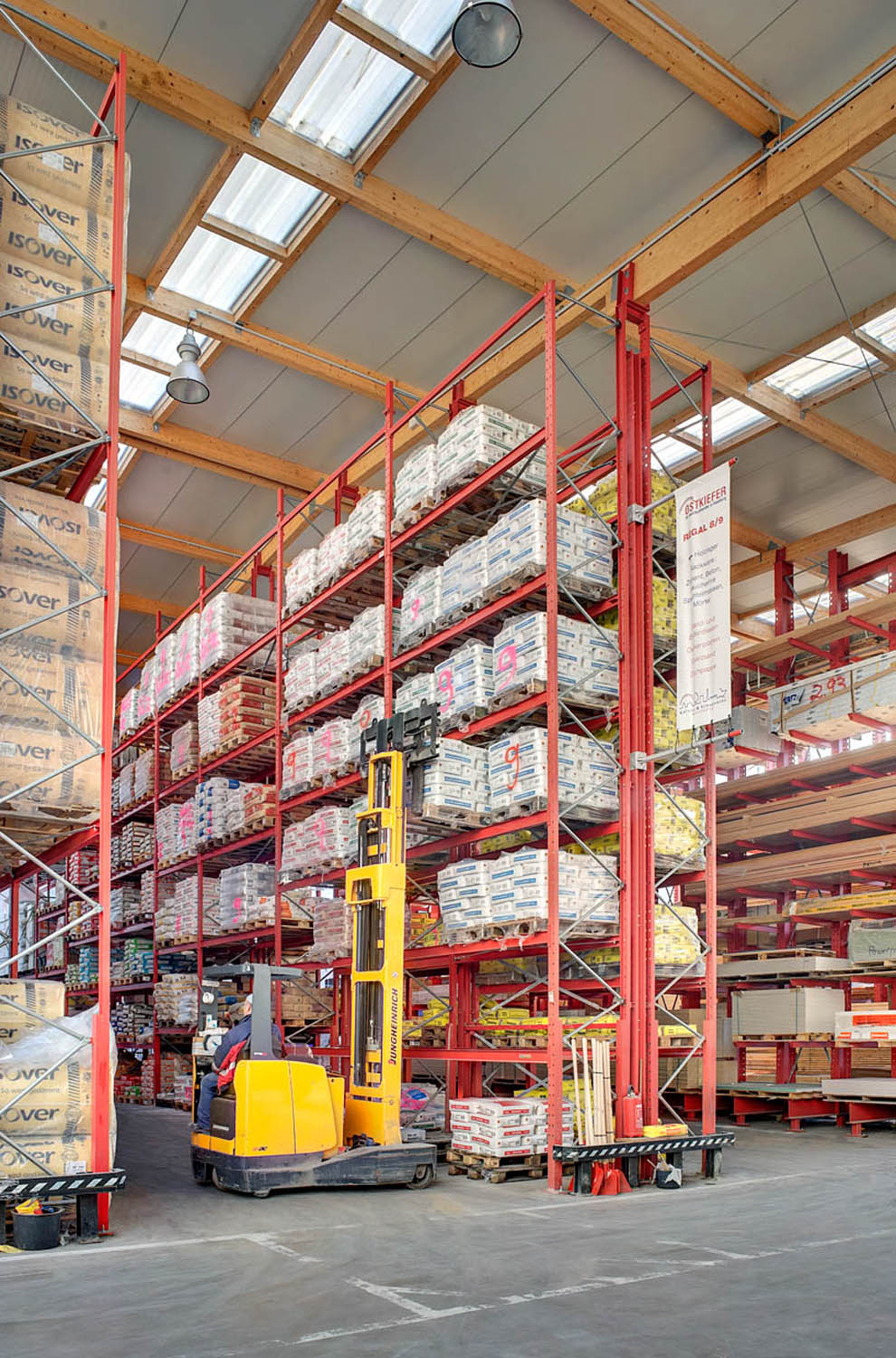

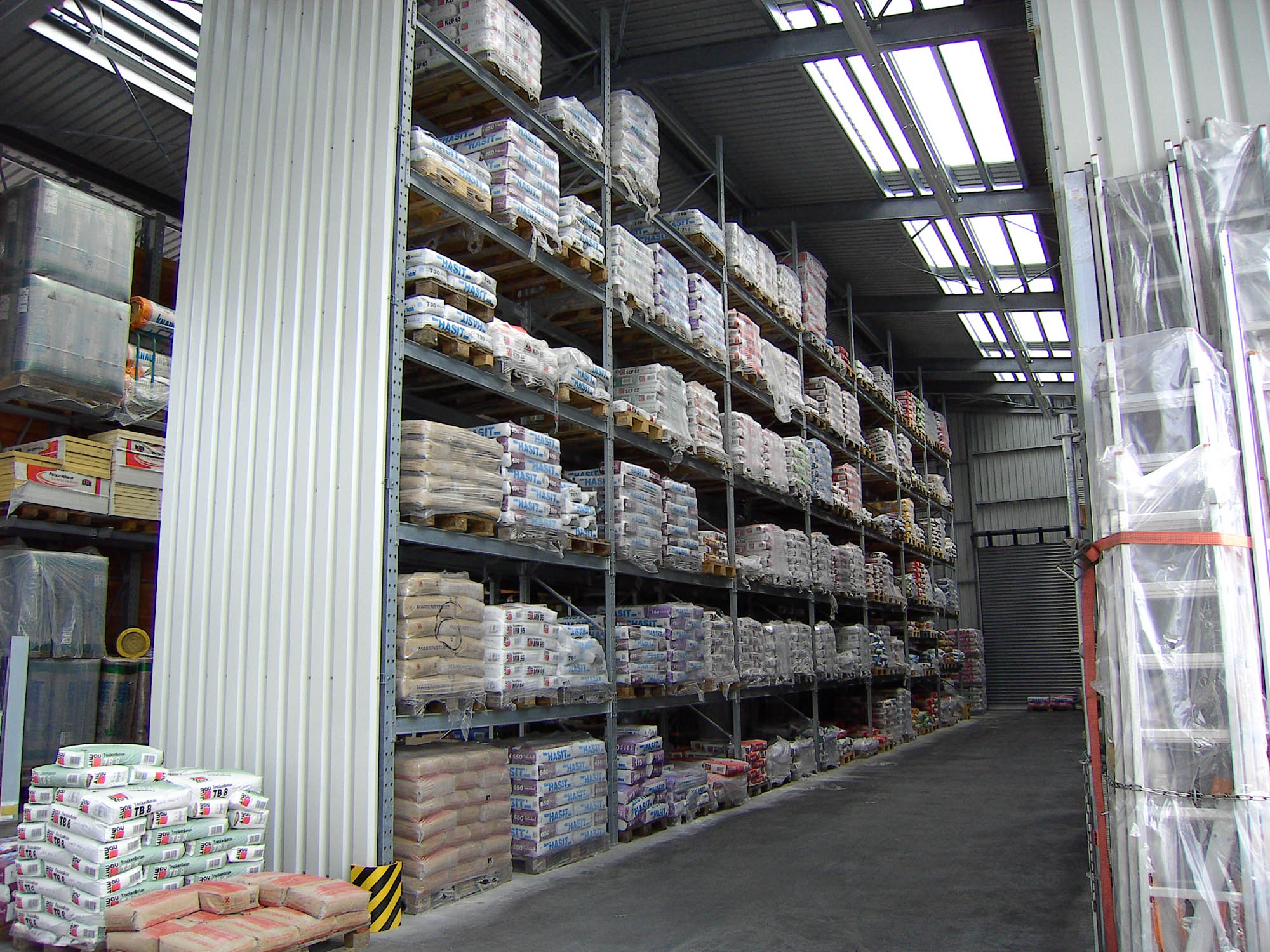

Eight storage levels, one above the other for building materials on pallets.

Accessories for rack-clad buildings

You can order a range of accessories for your rack-clad building, according to your needs and specific requirements. Accessories can include wall cladding options, trapezoidal sheets or sound-insulation panels, roofing made of various materials and light panels including smoke exhausts. We can also give quotations - for different weather-protection options, such as nets or folding curtains. All accessories can be supplied separately or together with your OHRA racks.

rack-clad warehouse

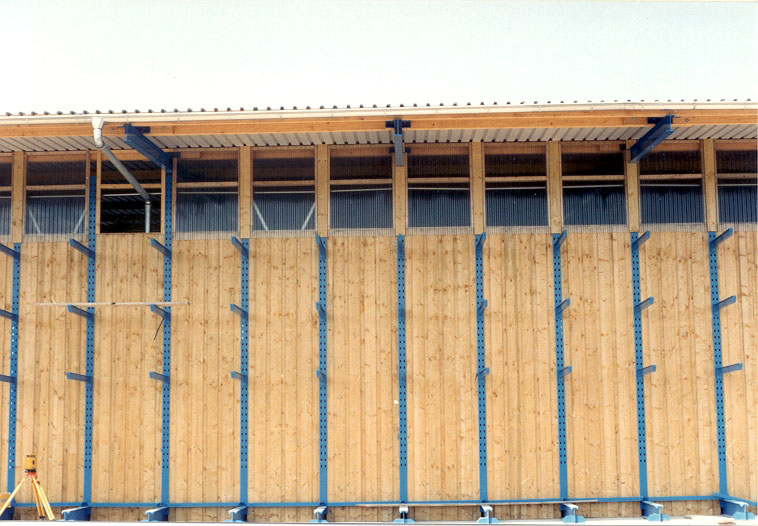

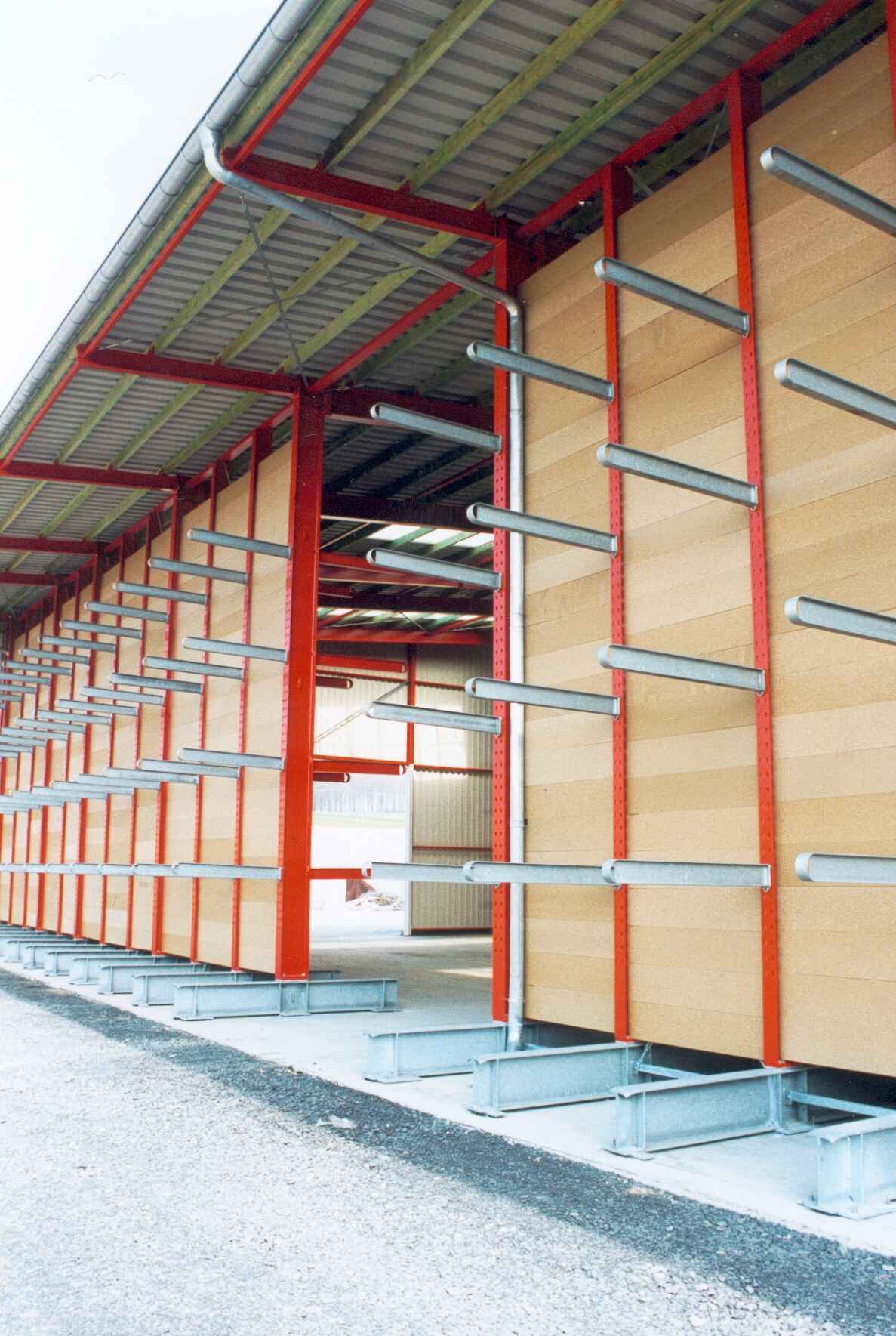

The wall elements are fastened between the supports of the cantilever racks
Rack-clad warehouse

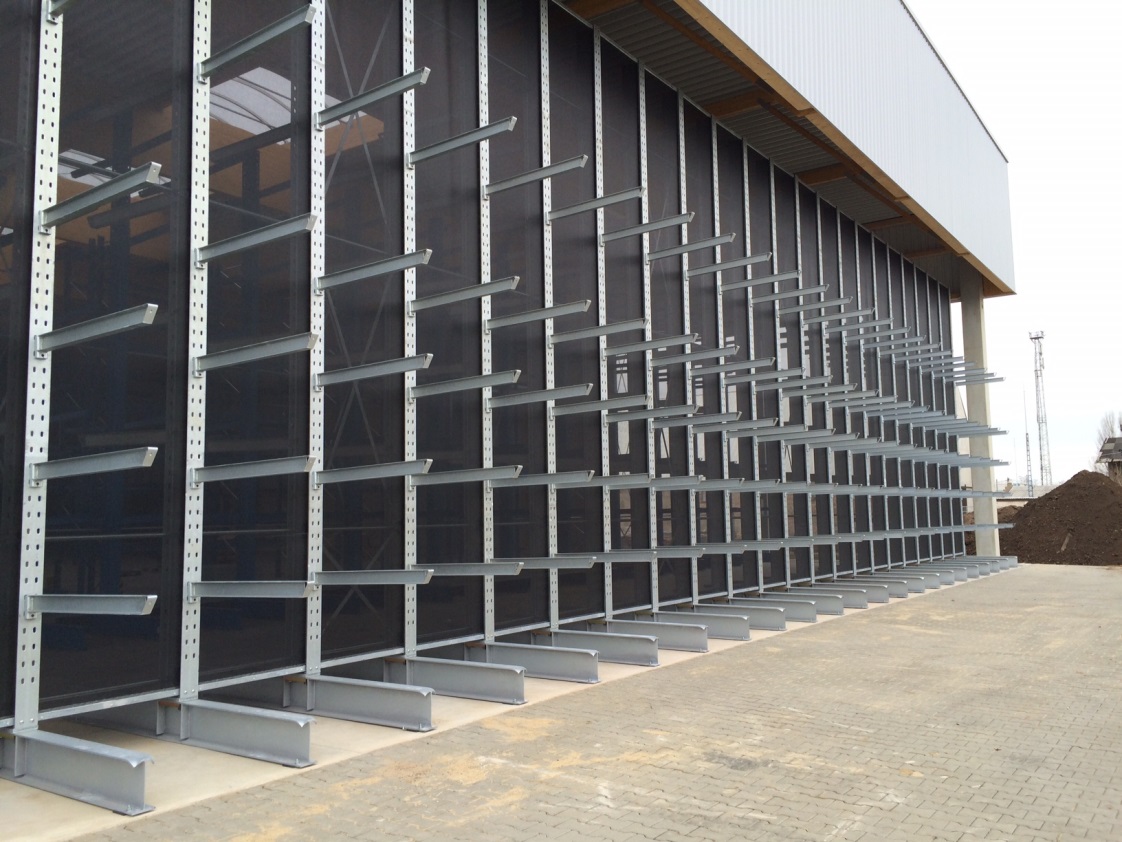

A high-strength net between the uprights serves as weather protection.
rack-clad warehouse
Cantilever racking warehouse with sheet pile wall. Roof made of trapezoidal sheet metal.
rack-clad warehouse

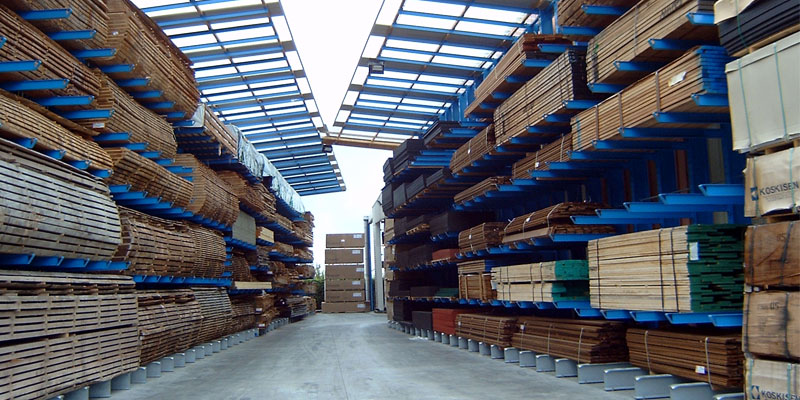

Covered cantilever racks with light panels as roof elements.
