pallet racking system

Tailor made pallet racking

Our pallet racking systems are the most popular storage systems across a comprehensive range of industries and sectors - such as haulage and transport companies, the building material trade, dispatching warehouses or as a single storage system for heavy goods.

OHRA pallet racking – many applications

Made in Germany, our racks are quick and easy to assemble and can be optionally extended at any time. We use hot-rolled high-quality steel sections for high load capacities and safe handling. Our hot-dip galvanised pallet racks are ideal for outdoor storage, and for light and medium loads our cold-rolled P5 pallet racking system uses optimised steel sheets with IPG profile beams. All our pallet racking systems can be supplied either with or without roof.

OHRA pallet racking advantages

  • Customised to your warehouse configuration
  • Easy and fast assembly
  • Superior safety tolerances
  • Accessories for individual racking configurations
  • Outdoor systems (including galvanised roof and/or walls) available.
  • 25-year rust-through warranty for hot-dipped galvanised finish
  • Also suitable for accomodating other storage aids such as pallet cages or heavy tools

pallet rack for buidling material
Hot-dip galvanized pallet racks with gratings. Ideal for storing building materials.

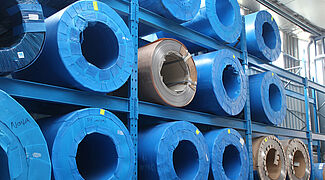

pallet racks for coil storage
Storage of heavy steel coils in pallet racks.
pallet racks for building materials
Warehouse in the building materials trade. Robust pallet racks for building materials.
pallet rack galvanized
Galvanized, robust pallet racks in the external warehouse.
pallet rack galvanized
Galvanized pallet racks for the storage of building materials in the external warehouse.

Heavy duty P3 pallet racking

Our P3 pallet racking system is ideal for heavy and bulky loads such as raw materials, semi-finished products and other pallet-stored products, and heights can be adjusted to suit any available space.

Cold-rolled steel pallet racks are prone to kinks or bending, compromising their load-bearing capacity. So we use hot-rolled steel for our frames and beams to ensure superior stability even under heavy loads. Our pallet racks can withstand bay loads of more than 31,500kgs and beam loads of more than 6,000kg. Beam levels have a 100mm pitch and can be moved without using tools. Indoor and outdoor (with roof and walls) options available.

OHRA hot-rolled steel pallet racking advantages

  • Individually configured pallet racking
  • Handles bay loads up to 32,500kg
  • Handles beam loads up to 6,000kg
  • Easy to assemble and extend
  • Outdoor systems (including hot-dip galvanised roof and/or walls) available

Request for proposal


Medium and light duty P5 pallet racking

Our P5 range of pallet racks is the most cost-effective option for beam loads of less than 3,000kg. Our rack uprights use optimised steel sheets and matching beams that give you flexibility at a reasonable price, without compromising on safety requirements.

High-quality racking for lighter loads

Our standard rack structures are screw-fixed, but we can provide welded rack structures on request. Beams are made of IPG sections and connected to uprights by hanging brackets. Our racks have a 50mm pitch, and beams can be adjusted without using tools. Uprights are supplied galvanised, and beams are painted in RAL 7035 (light grey).

OHRA P5 pallet racking advantages

  • Low cost pallet storage solution
  • Handles bay loads up to 18,000kg
  • Handles beam loads up to 3,000kg
  • Quick assembly, easy to extend
  • High-quality powder coating surface finish

Request for proposal

pallet rack galvanized
Clear storage of components in lattice boxes in pallet racks.
pallet rack
Pallet rack with guide rails for 4-way forklifts.
pallet rack with mezzanine floor
Pallet racks as a cost-effective solution for storing pallets.
pallet rack ml
Storage of heavy rolls on pallet racks.
pallet racks for tires
Careful storage of tires in pallet racks.

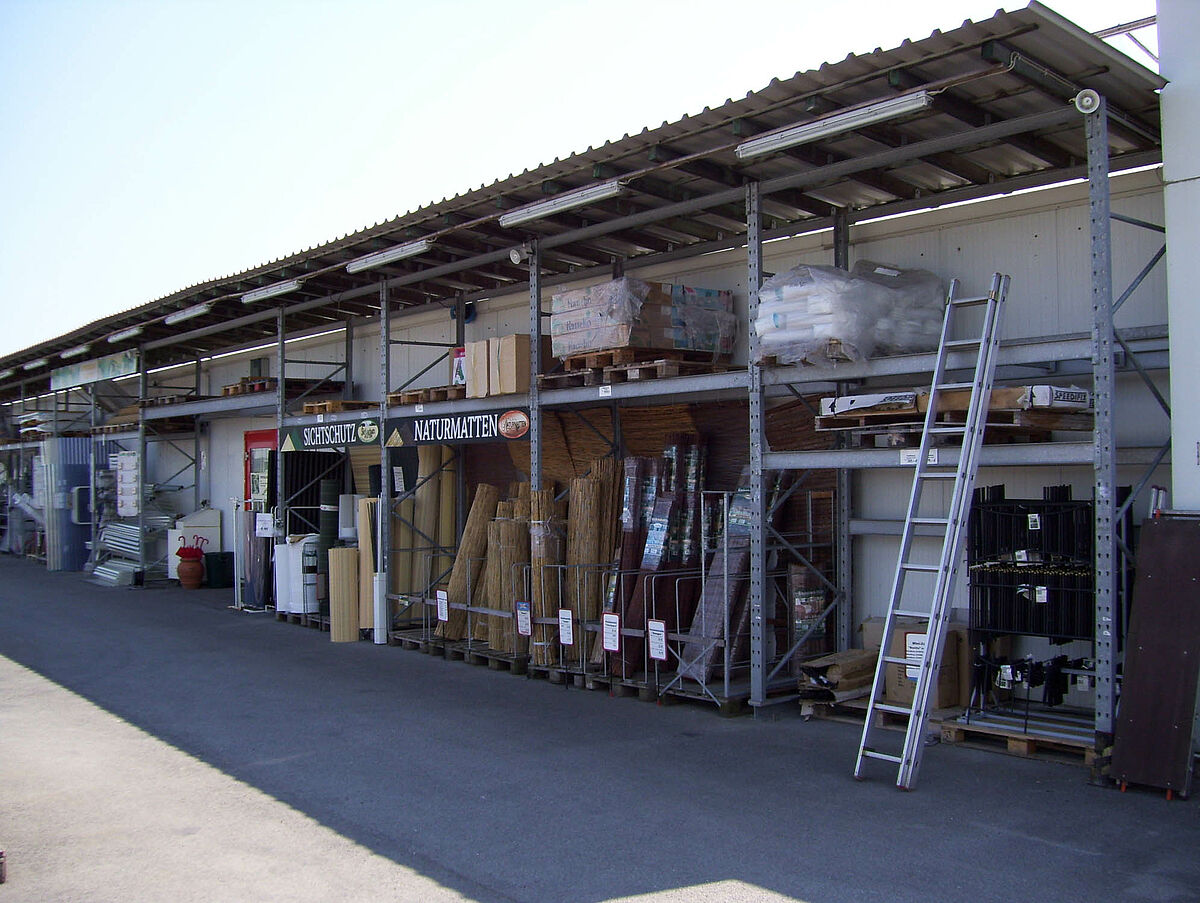

pallet rack with roof
Galvanized pallet rack with roof and side panels at a hardware store.
pallet rack with roof
Galvanized pallet rack with roof. Integrated vertical rackl for vertical storage.
pallet rack with roof
Pallet rack with roof for the storage of doors at a car recycling company.
pallet rack with roof
Galvanized pallet racks with a roof at a building materials store.
pallet rack with roof
Completely covered rows of racks. Small, open pallet racking hall

Roofed pallet racking

Roofed pallet racks are the ideal solution for weather-resistant goods that can be stored outdoors. Our roofed pallet racks are popular with garden centres, builders merchants and businesses where finished concrete parts, bagged goods on pallets or timber elements are stored in outdoor areas.

We offer multiple roof options - including trapezoidal sheets or light panels - as well as different wall designs that protect your goods from all weather conditions.

OHRA roofed pallet racking advantages

  • Low cost and highly durable
  • Available in hot-dip galvanised or powder-coated finishes
  • High bearing loads considering the weather effects
  • Uses the entire outdoor area, saving valuable inside space
  • Different roof designs available

Request for proposal


Dynamic racking systems

Our movable pallet racks are ideal for pallet goods that require compact storage with a low footprint. We install the pallet racks on torsion-resistant trolleys, and the complete rack is moved as a single unit. The system can be operated electronically or manually and can be switched to 'night position' outside of operating hours - preventing theft and ensuring aisles cannot be accessed by forklift.

OHRA mobile pallet racking advantages

  • Highly compact trolley racking system stores large loads with a small footprint
  • Movable racks ensure quiet movement and are pushed together without gaps.
  • Rack block 'night position' protects valuable goods from theft
  • Can be installed in new or existing spaces

Request for proposal


pallet rack mezzanine floor
Pallet racks and mezzanine floor in one. Store and pick on 3 floors.
pallet rack with mezzanine floor
Storage of insulation materials in pallet racks with an attached mezzanine floor.
pallet rack with mezzanine floor
Robust pallet racks with an attached mezzanine at an industrial company.
pallet rack with mezzanine floor
Pallet rack with mezzanine floor. Integrated lighting for illumination under the stage.
pallet rack mezzanine floor
Pallet racks, built over with a storage platform. Side stairs.

Pallet rack mezzanine floors

Thanks to the strength of our hot-rolled steel sections, we can design and construct a mezzanine substructure of pallet rack storage levels that ensures every inch of available warehouse space is used. We connect individual runs of pallet racking with steel sections covered with flooring (metal sheets or chipboard panels) that creates a structural supporting area between the racks.

Mezzanine floor pallet racking advantages

  • Maximises available space and explores the full height of your buildingspace utilisation by exploiting the entire height of the building
  • Closer proximity of storage and order-picking zones
  • Cuts transit time due to full integration of the storage area

Request for proposal


Drive-in racks

Our drive-in racks give you the best of both worlds by increasing the height of block storage and making the most of any compact storage space. They are perfect for storing large quantities of products as well as pressure-sensitive goods that cannot be stacked. Storage is performed according to the last-in-first-out (LIFO principle).

OHRA drive-in rack advantages

  • The ideal space-saving storage solution as it compacts necessary warehouse space
  • Shuttle units installed have extreme load-bearing capacities and sliding properties
  • Can deliver cost savings from the compact storage of pallets
  • Make it easy to store sensitive goods

Request for proposal

Drive-in racking system
Drive-in racking with frame protection
drive-in racking
principal sketch of a drive-in racking system
Drive-in racking system
Drive-in racking system at a shipping company.
drive-in racking system
drive-in racking system with a stacker crane for automated storage.
Drive-in racking system
Drive-in racking with drum collision protection

Technical details

Key features for frame uprights and horizontal beams:

  • Heavy duty hot-rolled channel section uprights.
  • Heavy duty hot-rolled “I” beam sections.
  • Unique high impact resistant uprights for tough environments.
  • Standard pitch of 100mm, 50mm pitch option also available.
  • All racking systems manufactured to DIN 18800-7, EUROCODE, and FEM 10.2.02.
  • Certified welding to DIN EN 287, DIN EN 729, and DIN EN ISO 13920
  • Certified welding to DIN EN 287, DIN EN 729, and DIN EN ISO 13920
pallet rack frame
Comparison of pallet rack frames - sheet metal and steel frames.

Pallet rack accessories

You can order a range of accessories to extend your OHRA pallet racking configuration according to your needs and industry requirements. These include collision guards, upright-raising units for safety in the rack aisle, load distributors and push-through protectors/spacers, and many more. These accessories can be supplied separately or delivered with your pallet racking order.

pallet rack accessory
Robust pallet racks with collision protection for the frames
Drive-in racking system
Drive-in racking with drum collision protection
pallet rack with mezzanine floor
Use as a pallet rack with an additional storage level
pallet rack mezzanine floor
Pallet racks in a furniture warehouse with an additional mezzanine floor on top.

References for pallet racks

Besteiro
Knaus Tabbert
Solvaro
FX Ruch
Investzal
Besteiro

Besteiro

At Maderas Besteiro, OHRA cantilever racking enables the efficient storage of timbers with a length of up to 13.5 metres; individually adapted pallet racking with up to 15 storage levels also offers plenty of space for the large variety of High Pressure Laminates (HPL). Compared to the original floor storage and outdated racking, Maderas Besteiro was able to increase its storage capacity by 20 per cent in the same storage space, speed up storage and retrieval processes by 30 per cent and reduce damage to stored goods by 70 per cent.

Show success story

Knaus Tabbert

Knaus Tabbert

Knaus Tabbert, a leading manufacturer of leisure vehicles in Europe, has equipped a new warehouse in Jandelsbrunn with cantilever and pallet racking from OHRA for the direct supply of the modern bodywork production. This means that different materials such as adhesives, aluminium and GRP coils, plywood packages, PVC flooring or wooden and polyurethane foam strips can be stored efficiently. Mesh shelves in the pallet racking and in some cases also in the cantilever racking enable flexible storage of a wide variety of containers and loading aids. The racking also excelled with its high load capacity - the eight metre high cantilever racks can carry up to 12 tonnes per upright, while the pallet racks have a shelf load of up to 2.4 tonnes. OHRA also scored points for the uncomplicated implementation of the demanding requirements for the fire protection systems: For example, two 80-millimetre holes were drilled in each of the uprights to allow the sprinkler system pipes to be fed through. This solution not only proved to be particularly space-saving, but the pipework is also well protected against damage.

Show success story

Solvaro

Solvaro

Thermoforming tools are cost-intensive custom-made products, individually tailored to each component to be produced. To store the valuable tools weighing up to seven tonnes, Solvaro has installed special racks from OHRA at its site in Szekszárd, Hungary. Each storage compartment can be individually designed for the respective tool size. In addition, the tools are directly accessible and can be quickly transported to the deep-drawing press. At the same time, the thermoforming tools are always protected from damage thanks to the customised beam construction.



Show success story

FX Ruch

FX Ruch

With 22 cantilever and pallet racks from OHRA, the building materials dealer FX Ruch has completely restructured its branch in Radolfzell. With a warehouse, large open-air storage and drive-in area, more items are available to customers more quickly. Thanks to the racks being adapted to a wide range of goods, the company was able to combine a high storage capacity with significantly more efficient logistical processes.

Show success story

Investzal

Investzal

For the storage of coils weighing up to 5 tonnes, the Hungarian company Invesztál installed a 19.9m long pallet rack from OHRA. The heavy-duty rack was individually adapted to the dimensions of the coils stored on pallets. Compared to the previous storage - a mixture of floor storage and standard racking - access to the coils is easier, more reliable and faster with the new racking. In addition, damage to the - partly coloured and galvanised coils is minimised.
